Beyond IQF: Industrial Quick Heat Transfer Solutions for Cooling Applications
Across the food processing and industrial manufacturing sectors, IQF (Individual Quick Freezing) is a widely recognized technology. In contrast, public information on Individual Quick Cooling (IQC) remains relatively limited, despite fast-growing market demand spanning food preservation, industrial production and more. From high-value freshly harvested berries and baked goods straight from the oven to heat-set textile fabrics and freshly filled cosmetics, continuous, uniform rapid cooling is critical to protecting product quality and boosting production efficiency.
As one of the few domestic manufacturers mastering cutting-edge European and American heat transfer and airflow control technologies, Yurnfreeze extends its proven fluid mechanics and heat exchange expertise from freezing to cooling scenarios. We deliver fully customizable IQC solutions across all equipment types, with proven track records in South American berry pre-cooling projects in Peru, domestic waxberry preservation lines, and industrial product cooling applications.
I. What Is Individual Quick Cooling (IQC)? Key Differences from IQF
Short for Individual Quick Cooling (IQC) is a forced convection cooling process that reduces dispersed products to target temperatures (typically 0–15°C for chilled storage or ambient temperature ranges) via continuous conveying, while keeping products individually separated to avoid sticking or crushing damage.
Both IQC and IQF (Individual Quick Freezing) belong to the rapid heat transfer technology family, but they differ fundamentally in purpose and application:
| Dimension | IQC – Individual Quick Cooling | IQF – Individual Quick Freezing |
| Core Objective | Rapidly cool products to chilled/ambient temperature; inhibit microbial activity and preserve original product quality without damaging cell structures | Reduce product core temperature to below -18°C for long-term frozen storage |
| Temperature Range | Cooling air typically 0–10°C; final product temperature 0–15°C | Cooling air typically -35 ~ -40°C; final product temperature ≤ -18°C |
| Suitable Products | Freeze-sensitive high-value fruits, fresh food, baked goods, and industrial products requiring temperature reduction | Fruits, vegetables, seafood and meat products intended for long-term frozen storage |
| Technical Focus | Gentle, uniform heat transfer; low product damage; high temperature control accuracy | Ultra-fast heat exchange; low dehydration loss; superior individual separation |
In short: IQF serves long-term frozen storage, while IQC supports quality preservation and production continuity — it is a critical link for upgrading quality and shortening production cycles in continuous manufacturing.
II. Core Working Principles & Key Advantages of IQC

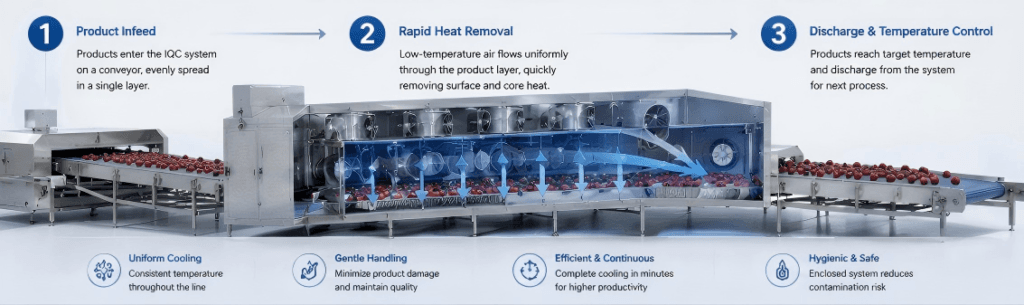

Built on the same forced convection heat transfer fundamentals as freezing technology, IQC delivers uniform low-temperature airflow through optimized duct and fan systems to rapidly remove heat from the product layer. For cooling-specific scenarios, structural parameters and technical configurations are specially tuned:
1. Gradient temperature zone design: Independent temperature control across multiple zones prevents condensation and quality damage from abrupt temperature changes, ideal for temperature-sensitive products such as berries and cosmetics.
2. Precise airflow regulation: Air velocity is matched to product weight and form, ensuring cooling efficiency without blowing over or damaging delicate items such as fabrics and thin-skinned berries.
3. Uniform airflow distribution: Air ducts are independently optimized based on proven international fluid mechanics frameworks, minimizing temperature variation across the line and consistent cooling results batch to batch.
4. Closed-loop continuous control: Inlet temperature and ambient temperature sensors enable automatic cooling capacity adjustment for stable performance and reduced energy waste.
Advantages Over Traditional Natural / Static Cooling
1. Dramatically higher efficiency: Natural cooling typically takes hours; IQC completes cooling in minutes, greatly shortening production cycles and reducing floor space requirements.
2. Superior product quality: Berries pass quickly through the high-respiration temperature range, maximizing freshness and extending shelf life; industrial products set faster with better dimensional stability.
3. Lower food safety risks: Food products move quickly through the ambient danger zone, restricting microbial growth; enclosed cooling prevents contamination from dust and environmental impurities.
4. Seamless continuous production: Individual Quick Cooling lines integrate directly with upstream harvesting, blanching, filling and setting processes for fully automated production and reduced material handling labor.
III. Core Application Scenarios of IQC Technology
IQC applications extend far beyond the food industry, with robust demand across industrial manufacturing. Below are the most widely deployed use cases:
(A) Food Processing: A Critical Step for Quality & Freshness

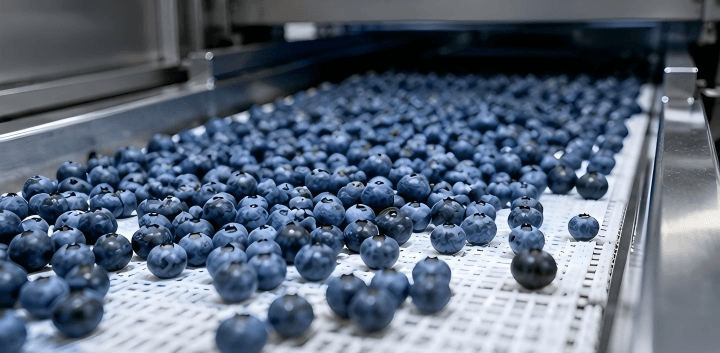

1. High-Value Berry & Fresh Fruit Pre-Cooling
This is one of the most mature IQC applications. Thin-skinned berries such as blueberries, waxberries and strawberries have high respiration rates after harvesting. Left at room temperature, they soften and decay rapidly; traditional cold room cooling is slow and creates large temperature differentials that easily damage fruit flesh.

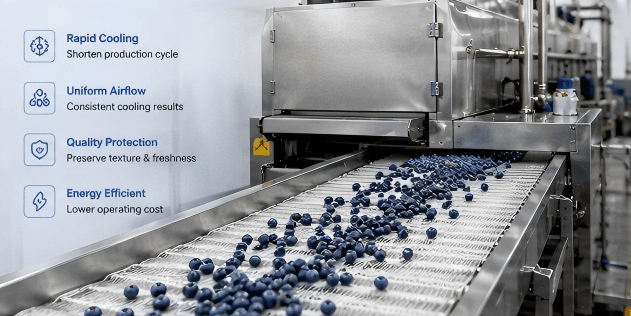

On-Site Blueberry Cooling Parameters (Yurnfreeze Peru Project, Field-Verified)
Freshly harvested blueberries enter at approximately 30°C. The process adopts a two-stage preservation workflow: front-end rapid pre-cooling + downstream cold storage precision temperature control:
1. Stage 1 (IQC tunnel cooling line): Reduce temperature from 30°C to 5°C via continuous mesh belt tunnel cooling. This quickly suppresses fruit respiratory activity by passing through the high-temperature respiration zone in a short time.
2. Stage 2 (cold storage phase): Gradually cool from 5°C to 0°C. This is a high-precision storage temperature control phase with extremely strict requirements for temperature fluctuation, to prevent quality degradation from temperature rebound.
A non-negotiable temperature limit applies throughout: blueberry pulp temperature must never drop below -1°C, to avoid frost damage, peel discoloration and flesh browning.
Corresponding operating parameters:
Containerized cold storage: set point ~4°C, evaporating temperature -2°C ~ -3°C, for transit staging and gradient temperature control;
Dedicated IQC tunnel cooler: chamber set point 0°C, evaporating temperature -7°C, for front-end continuous pre-cooling.
Solution: Mesh belt tunnel cooling lines reduce core temperature to 0–4°C within one hour of harvesting, suppressing respiration and extending shelf life by 7–15 days. Products are conveyed in a single, low-contact layer to avoid peel damage and preserve commercial appearance.

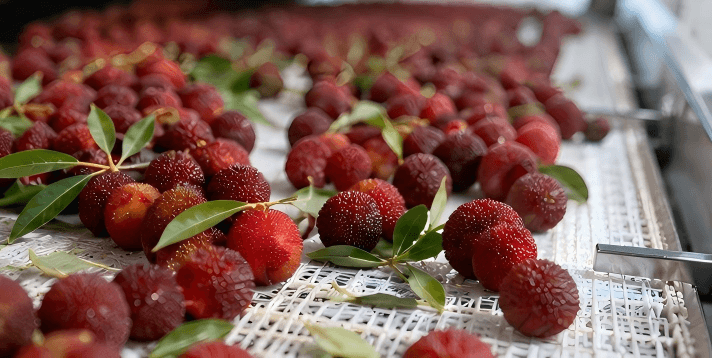

Proven deployments: Yurnfreeze has supplied tunnel pre-cooling lines for leading berry groups in Peru, South America, and waxberry processing enterprises in China, with verified cooling uniformity and preservation performance.
2. Fresh-Cut Produce & Post-Blanching Cooling
Diced vegetables, fresh-cut fruits and mushrooms retain residual heat after washing and blanching. Without rapid cooling, they quickly discolor and support microbial growth. IQC tunnel lines reduce products to chilled temperatures rapidly, locking in color and freshness for downstream packaging or further processing.
3. Baked Goods & Cooked Food Cooling
Bread, cakes and other baked goods are hot upon leaving the oven; natural cooling is slow and exposes products to environmental contamination. Cooked meats and ready meals also require rapid cooling to packaging temperature. IQC spiral / tunnel cooling lines deliver continuous, controllable cooling with consistent quality and full food safety compliance.
(B) Industrial Manufacturing: A Key Link for Continuous Production
1. Textile Fabric Cooling After Heat Setting
After passing through heat setting machines, textile fabrics reach 80–120°C. Direct winding causes wrinkles and uneven shrinkage, while natural cooling requires large amounts of staging space.
Solution: Custom multi-layer mesh belt tunnel cooling lines. Hot fabric passes continuously and uniformly through the cooling zone, reducing to ambient temperature via even airflow. Wound fabric has better dimensional stability, greatly improving production efficiency and saving workshop floor space.
2. Cosmetics Cooling & Setting After Filling
Creams, lotions and mask bases are fluid when filled hot. They require cooling and setting before capping and labeling, otherwise leakage and layer separation can occur.
Solution: Mesh belt tunnel cooling lines. Full pallets of filled products pass continuously through the low-temperature cooling zone, with precisely controlled cooling rates for uniform product setting, ideal for high-volume continuous production.
3. Additional Industrial Scenarios
Rapid cooling of pharmaceutical intermediates and health supplement granules to prevent high-temperature degradation;
Cooling and setting of plastic pellets and injection molded parts for improved dimensional accuracy;
Post-soldering cooling of electronic components to ensure stable performance.
IV. Main Equipment Types for IQC Applications
Different product forms, production capacities and cooling requirements call for different equipment configurations. Yurnfreeze provides customized cooling solutions across three main equipment categories:

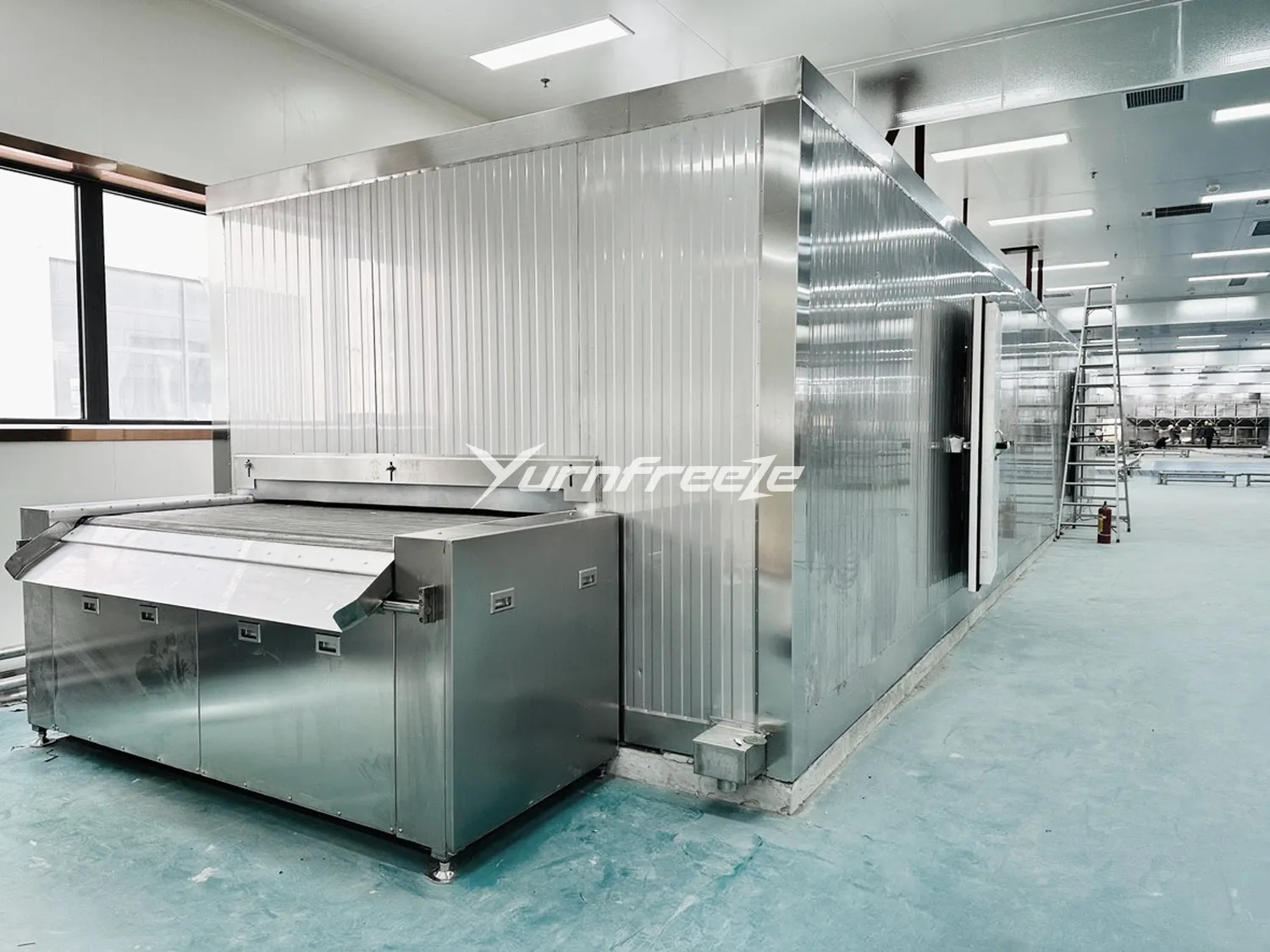

1. Tunnel Cooling Lines
Structure: Horizontal single-layer or multi-layer mesh belt design, customizable in width and layer count, suitable for large, palletized or easily damaged products;
Ideal for: Blueberry, waxberry and other fresh fruit pre-cooling, textile fabrics, palletized cosmetics, large-piece produce and packaged food — the most versatile type for industrial and food cooling;
Key advantages: High versatility, flexible customization, adjustable belt material, air velocity and zone count, with low product damage from flat-layer conveying.

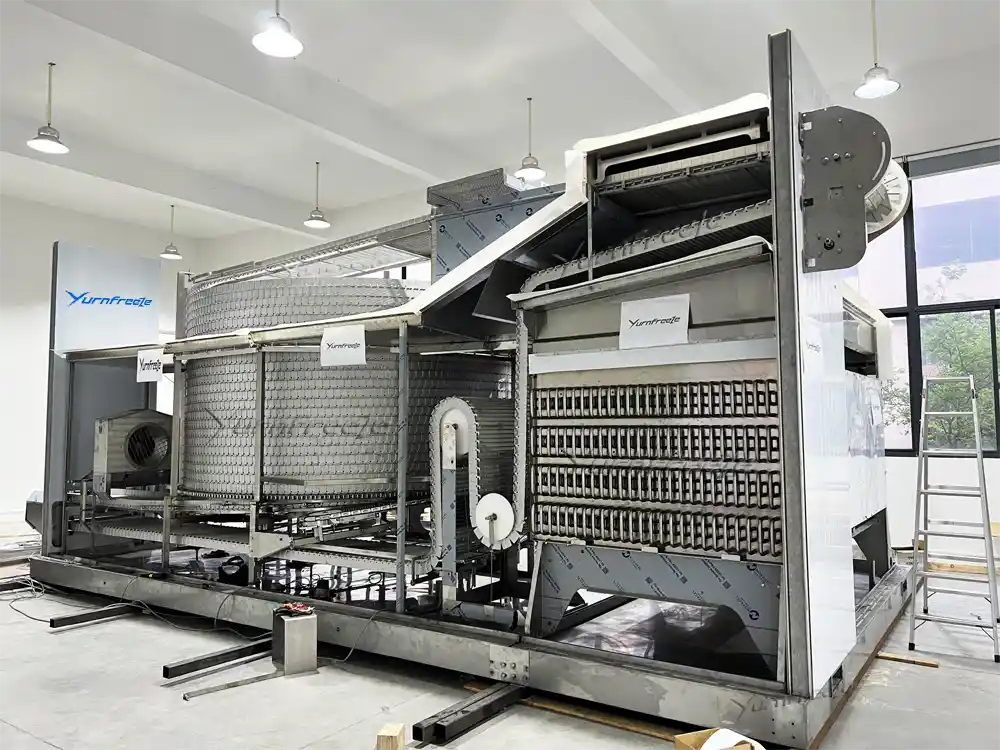

2. Spiral Coolers
Structure: Vertical multi-layer self-stacking / drum-type mesh belt design, with small footprint, high capacity, long cooling path and uniform temperature reduction;
Ideal for: Baked goods, cooked foods and other scenarios requiring long cooling times and high-capacity continuous production;
Key advantages: High space efficiency, stable operation, high automation, suitable for 24/7 continuous production.

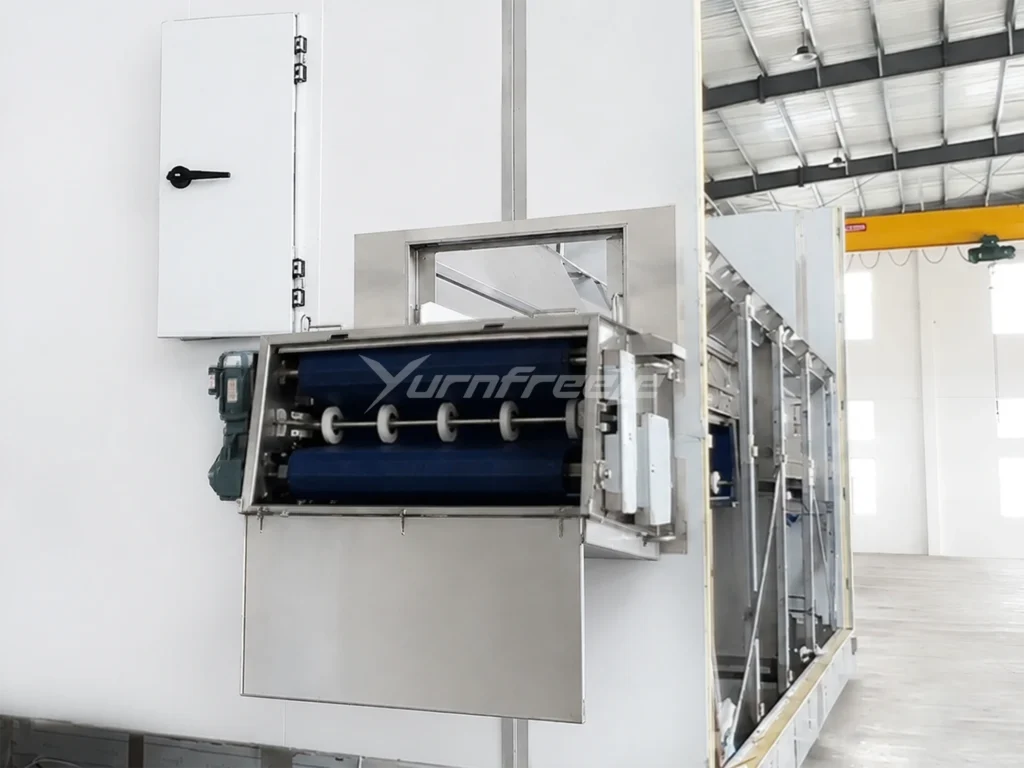

3. Fluidized Bed Coolers
Structure: Gentle airflow suspends small granular products for 360° cold air contact, delivering fast cooling and excellent individual separation;
Ideal for: Peas, corn kernels and other small uniform granular fruits and vegetables requiring zero sticking and low breakage;
Key advantages: High cooling efficiency, zero product compression, intact final product appearance, available in stainless steel or plastic belt configurations.
V. Key Considerations for Selecting IQC Cooling Equipment
1. Define product characteristics and target parameters first
Confirm product form, size, impact resistance, inlet temperature, target final temperature and acceptable cooling rate — these determine equipment type and duct design. For example, the Peru blueberry project requires strict gradient cooling limits and a minimum product temperature threshold to avoid frost damage. IQC tunnel equipment handles only the front-end high-efficiency pre-cooling stage, while downstream 0°C precision storage requires a dedicated high-precision cold storage system; each plays its dedicated role to balance efficiency and quality.
2. Match capacity and site conditions
Select equipment specifications based on hourly throughput, and choose spiral (space-saving) or tunnel (flat layout) designs according to ceiling height and available floor space.
3. Verify hygiene and compliance requirements
For food applications, confirm food-grade materials, CIP cleaning compatibility, and certifications such as HACCP and CE. For export projects, ensure alignment with target market safety and environmental regulations.
4. Prioritize manufacturers with custom engineering capabilities

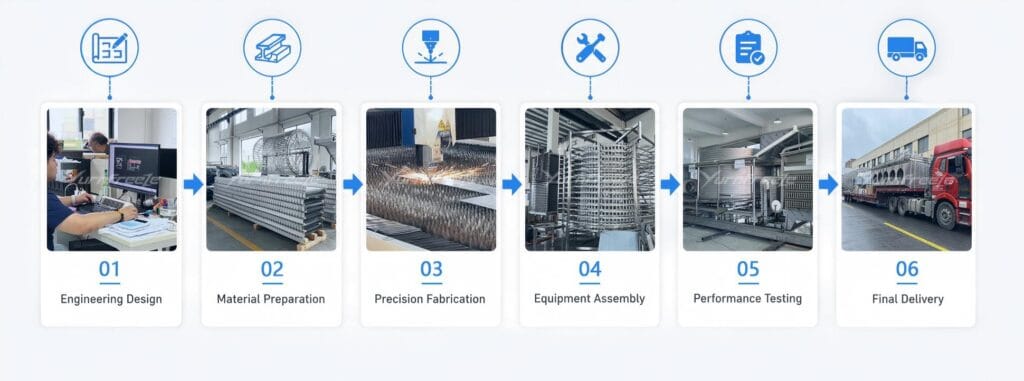

IQC scenarios are highly diverse, and standardized equipment rarely delivers perfect results. Choose manufacturers with in-house R&D and own production facilities to optimize ductwork, belts and temperature control logic for specific products.
5. Evaluate total lifecycle operating cost
Cooling equipment runs continuously long-term. Evaluate fan and refrigeration energy consumption, equipment failure rates and after-sales spare parts availability to control total cost of ownership.
VI. Advantages of Yurnfreeze IQC Cooling Solutions
As one of the few domestic manufacturers mastering cutting-edge European and American heat transfer technology with in-house R&D and production of full-range freezing / cooling equipment, Yurnfreeze delivers competitive IQC solutions:
1. Full product range with strong customization capability
Tunnel, spiral and fluidized bed models can all be configured for cooling duty, with customizable temperature, airflow and belt design for food and industrial scenarios including waxberries, blueberries, cosmetics and textiles. We deliver complete end-to-end solutions combining front-end Individual Quick Cooling pre-cooling and downstream cold storage precision temperature control, replicating the proven two-stage cooling logic of our Peru blueberry projects to balance continuous production efficiency and strict temperature requirements for high-value berries.
2. Benchmark-aligned technology with reliable performance
Air ducts and heat exchange structures are independently optimized based on proven international industrial cooling technical frameworks. Airflow uniformity, temperature control accuracy and energy efficiency match leading international brands, with proven long-term continuous operation reliability.
3. Proven field performance with extensive deployment experience
Our solutions have been widely deployed in Peruvian blueberry gradient pre-cooling, domestic waxberry preservation and industrial cooling projects. All process parameters are derived from real on-site production data and validated by leading food enterprises worldwide, adaptable to voltage and regulatory requirements across different countries and regions.
4. Full-chain service with complete export certifications
Backed by our own manufacturing facility, we integrate R&D, production, installation and after-sales support. All equipment carries CE and other international certifications, delivering one-stop service from solution design to global delivery for smooth project commissioning.
Conclusion
As food processing upgrades toward higher-quality preservation and industrial production shifts toward continuous automation, demand for Individual Quick Cooling technology will continue to grow. It is not a “simplified version” of freezing technology, but a targeted heat transfer solution built for specific scenarios, with core value in controllable, efficient temperature reduction that protects product quality and boosts production efficiency.
A common pitfall for many berry processors is applying IQF low-temperature parameters directly, which causes frost damage and product loss. The Peru blueberry field project proves that the core of IQC is not lower temperatures — it is controllable gradient cooling and strict adherence to product temperature limits. The combination of front-end tunnel rapid pre-cooling and downstream cold storage precision temperature control delivers the optimal preservation result for high-value berries.
Yurnfreeze will continue to advance fluid mechanics and heat transfer technology, leveraging our full-range equipment manufacturing capability and project experience to deliver customized cooling solutions tailored to real production scenarios for customers worldwide. If you have requirements for berry pre-cooling, product cooling or industrial temperature reduction, we welcome inquiries for customized solutions tailored to your product characteristics and production capacity.
