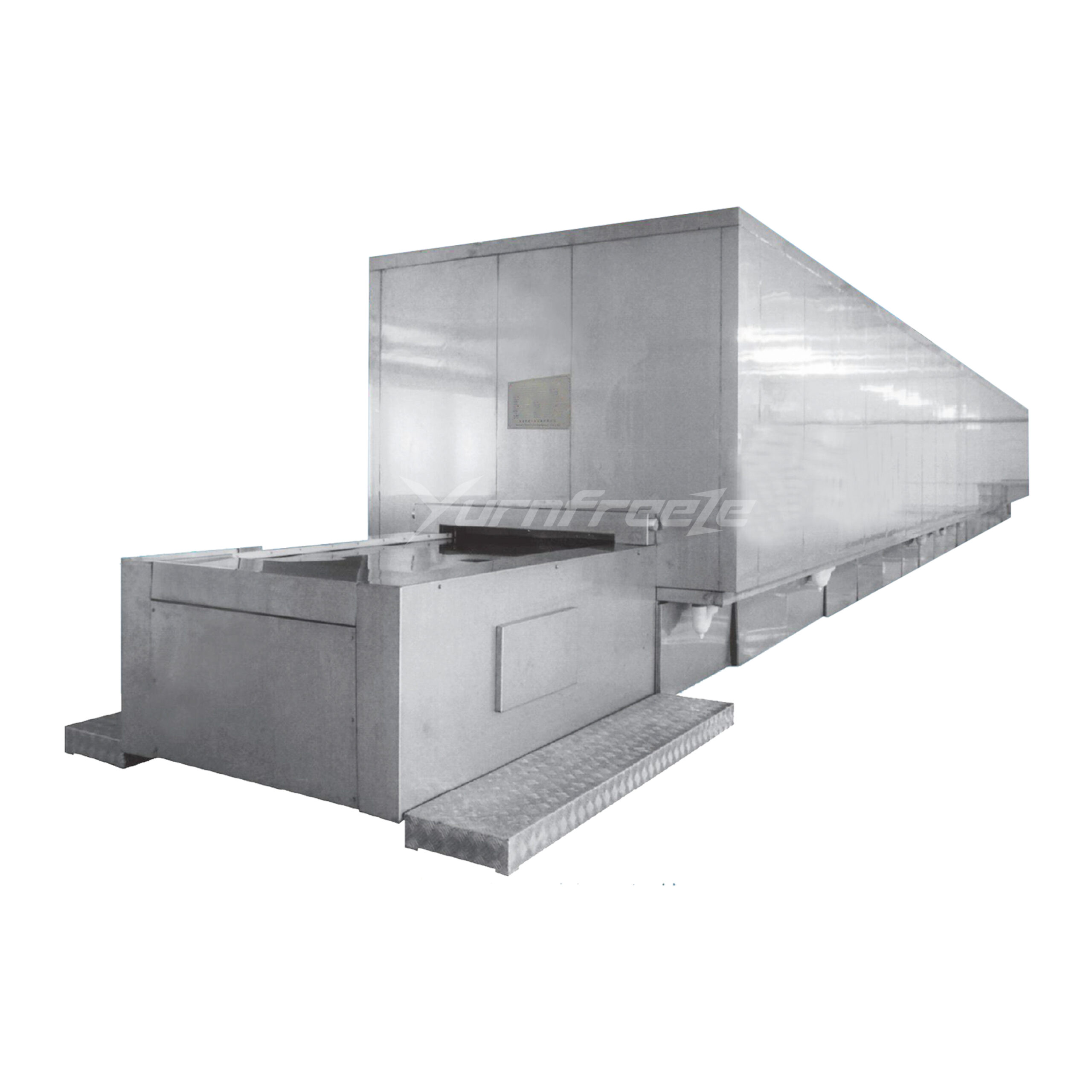

Tunnel Freezer

Yurnfreeze Tunnel Freezer is a continuous air-blast freezing system designed for medium-capacity food processing lines.
By combining optimized airflow distribution with robust conveyor structures, it delivers stable freezing performance, uniform product quality, and reliable long-term operation.

Tunnel freezers are widely used where consistent throughput, simple operation, and flexible product handling are required.

Production Capacity:150 kg/h – 2,000 kg/h

Technical Highlights:
  • Full stainless steel freezing chamber
  • High-strength SUS304 conveyor system
  • Adjustable belt width based on customer requirements
  • Optimized airflow direction to maximize heat transfer efficiency
  • Designed for easy operation and routine maintenance

Core Technology & Design Features

  • Stable Continuous Freezing
    Designed for uninterrupted production with consistent output.

  • Uniform Freezing Performance
    Thermal wave airflow system ensures even air distribution across the entire belt width.

  • Simple & Reliable Structure
    Fewer moving parts reduce failure rates and maintenance costs.

  • Flexible Conveyor Options
    Mesh belt or stainless steel plate belt selectable based on product characteristics.

  • Long Service Life
    Heavy-duty SUS304 stainless steel construction supports long-term industrial use.

Technical Specifications

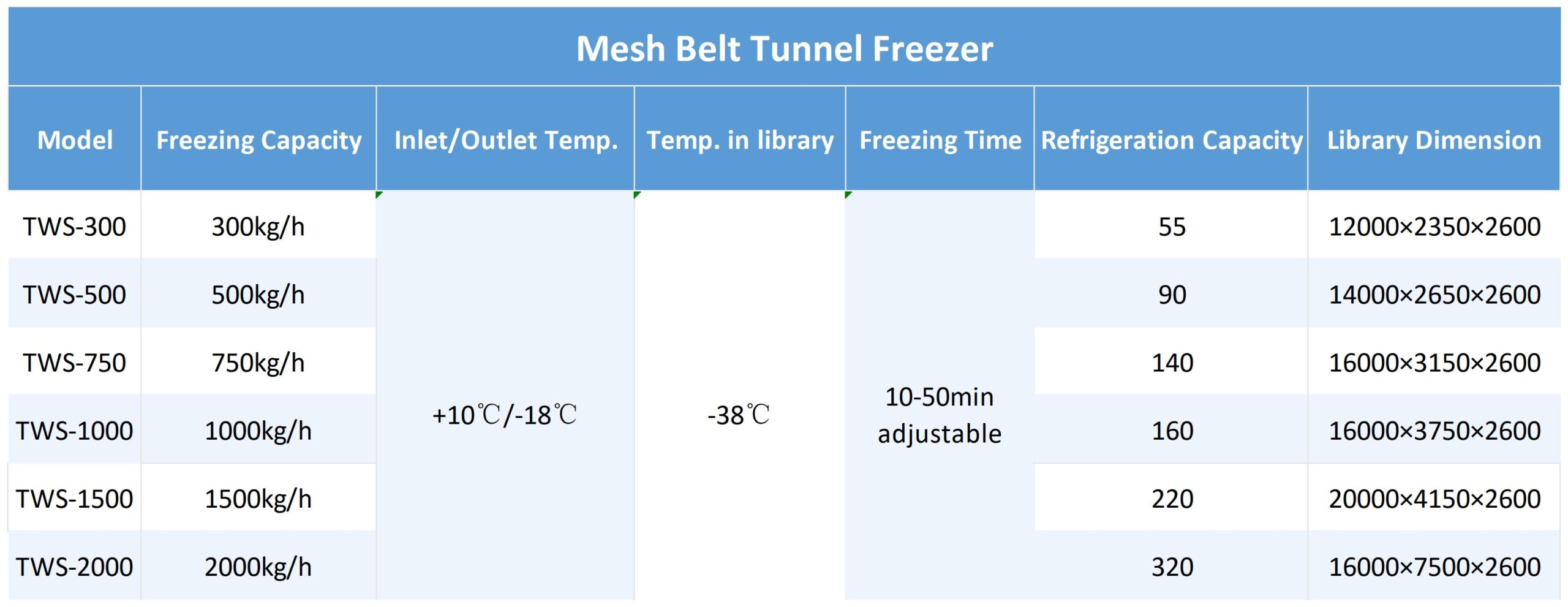

        Mesh Belt Tunnel Freezer

  • Better air penetration
  • Suitable for IQF-style products
  • Ideal for irregular shapes and loose products

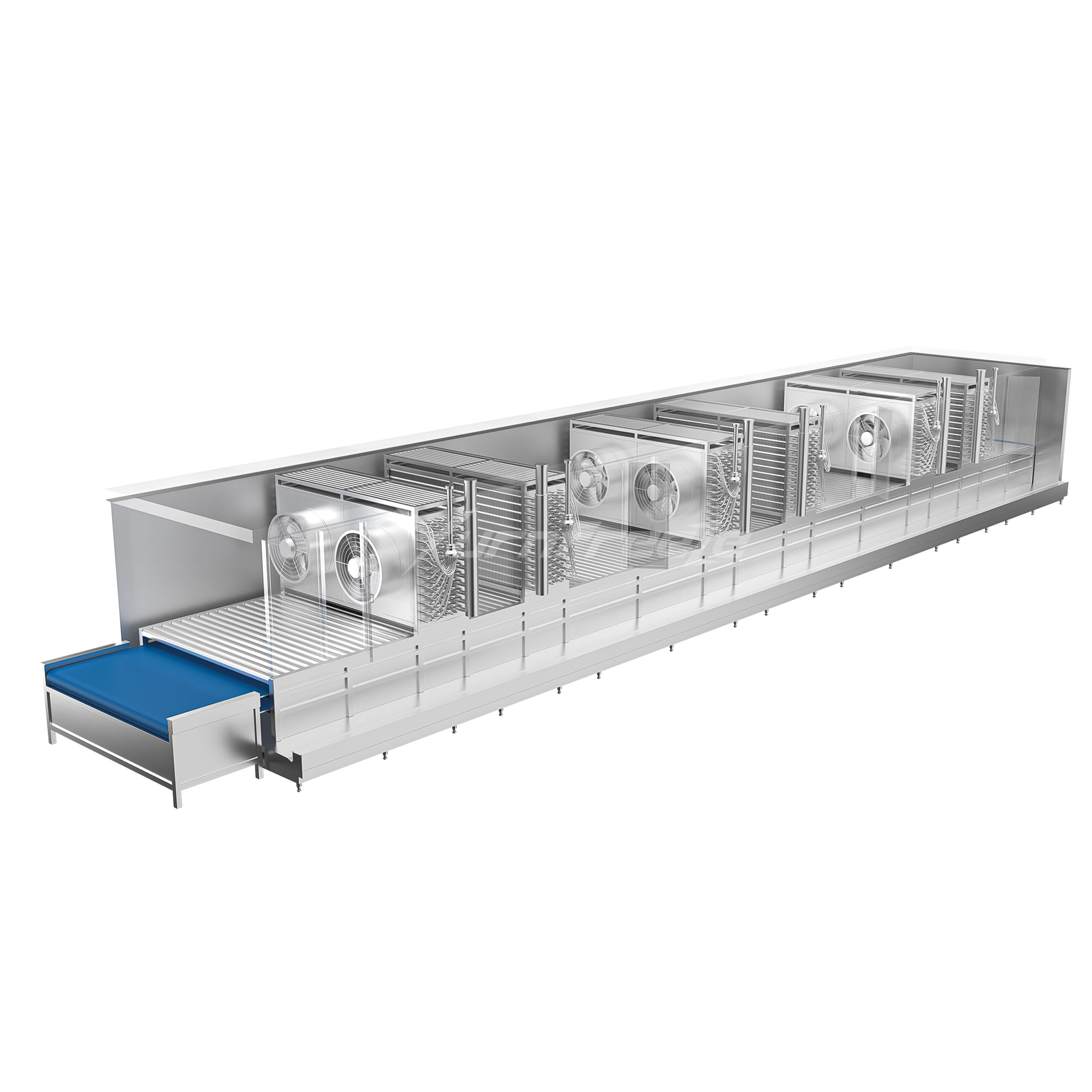

Mesh belt tunnel freezer

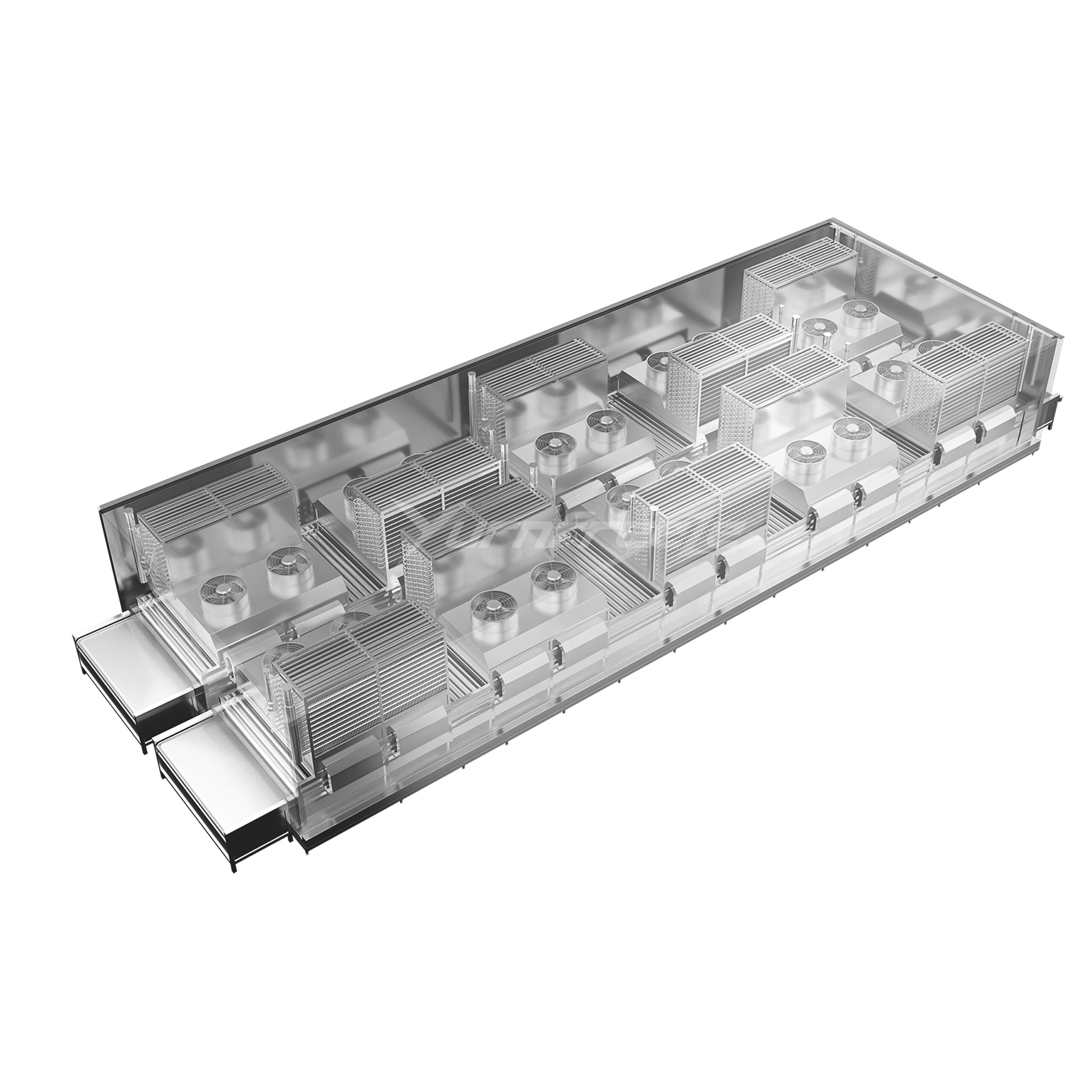

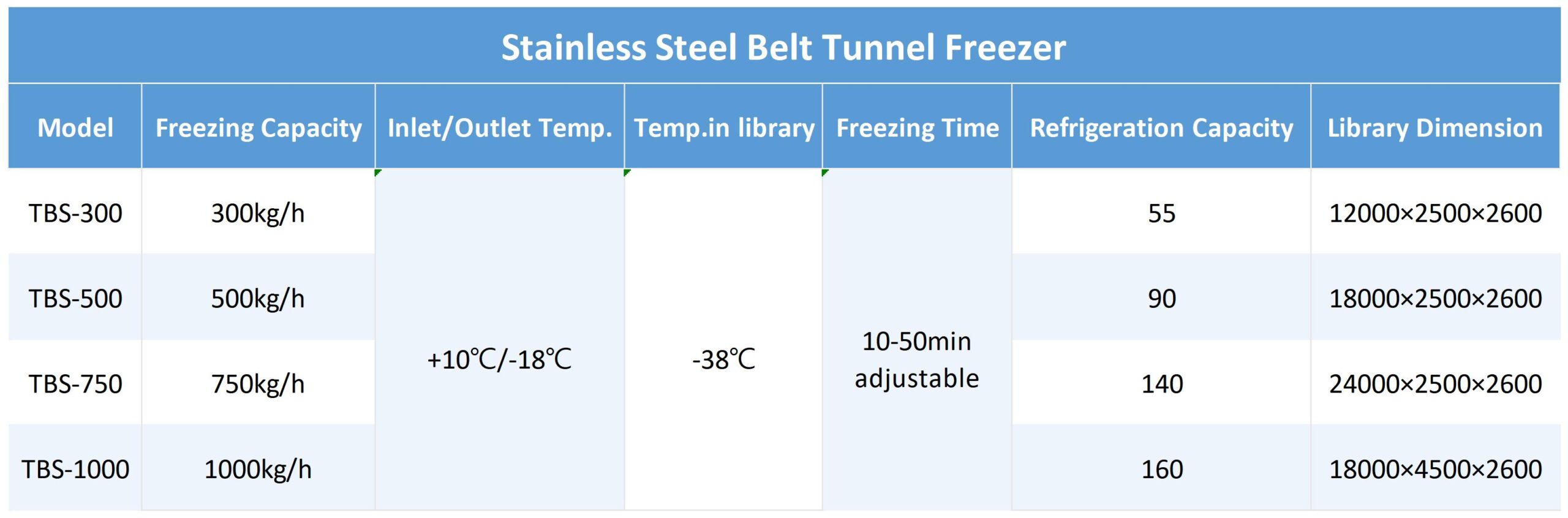

       Plate Belt Tunnel Freezer

  • Flat and stable conveying surface
  • Prevents product deformation
  • Suitable for soft, sticky, or packaged products

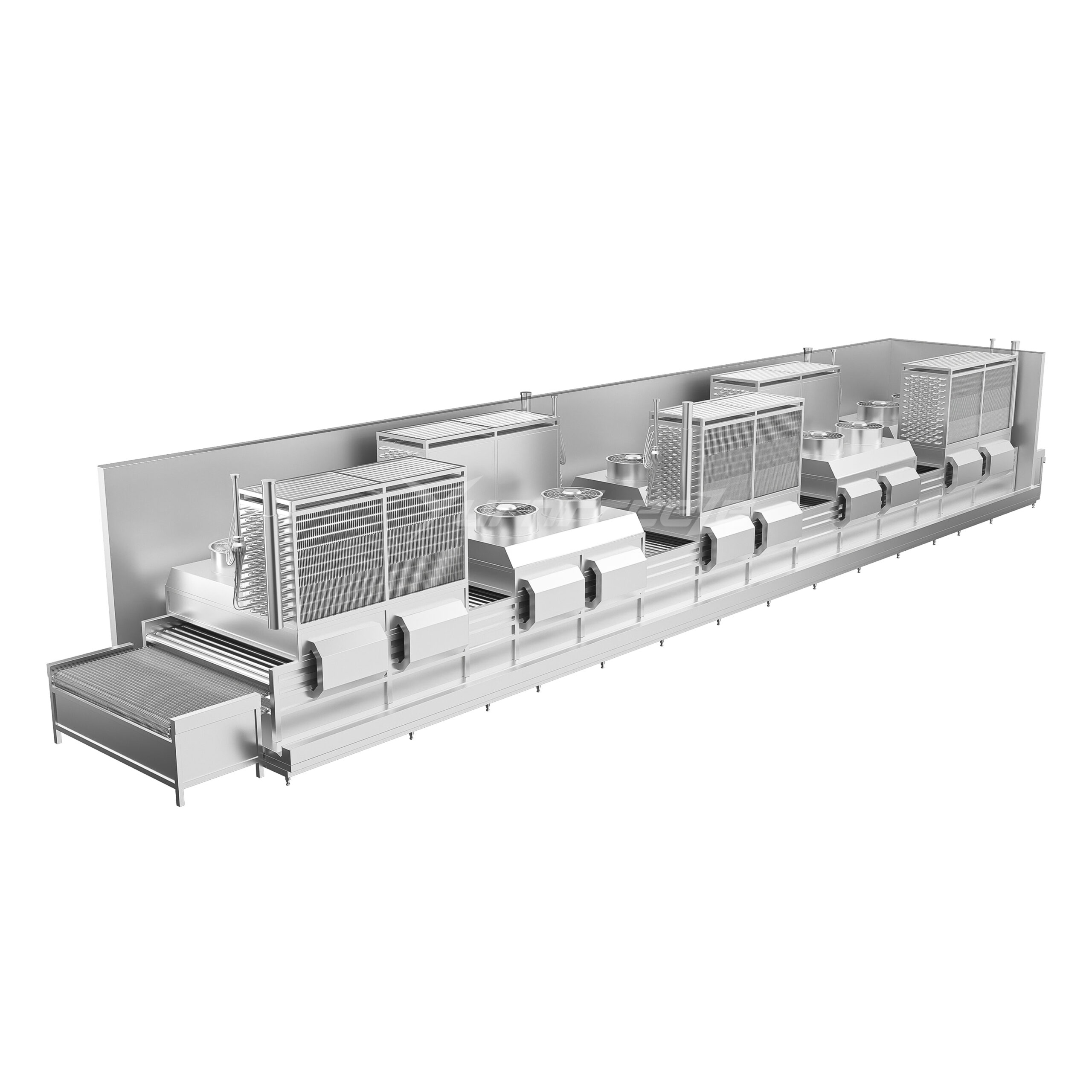

Stainless steel belt tunnel freezer

Typical Applications

  • Seafood: shrimp, fish fillets, squid, shellfish
  • Poultry: chicken cuts, wings, nuggets
  • Fruits & Vegetables: diced, sliced, whole produce
  • Pasta & Dough Products
  • Dairy Products and Prepared Foods
