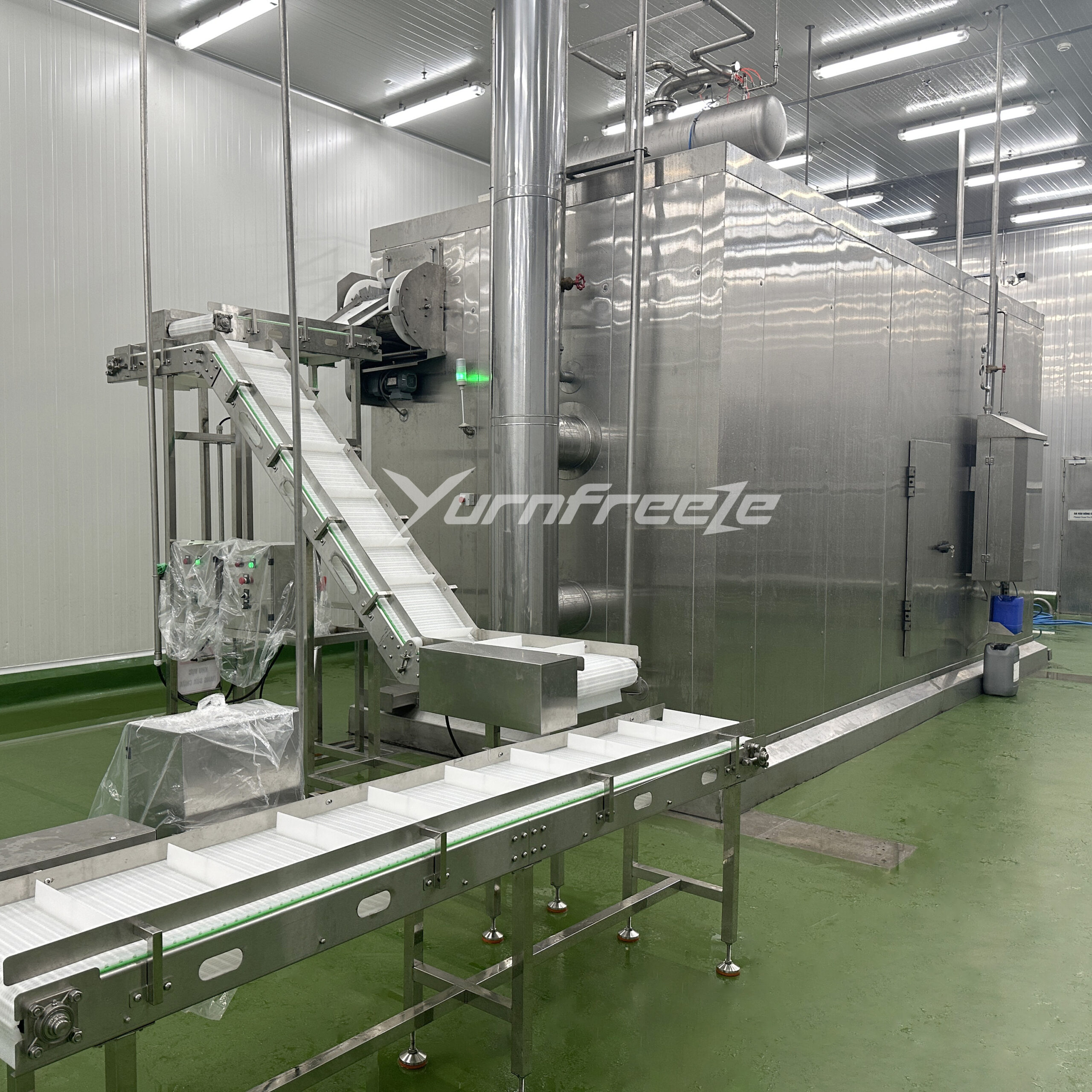

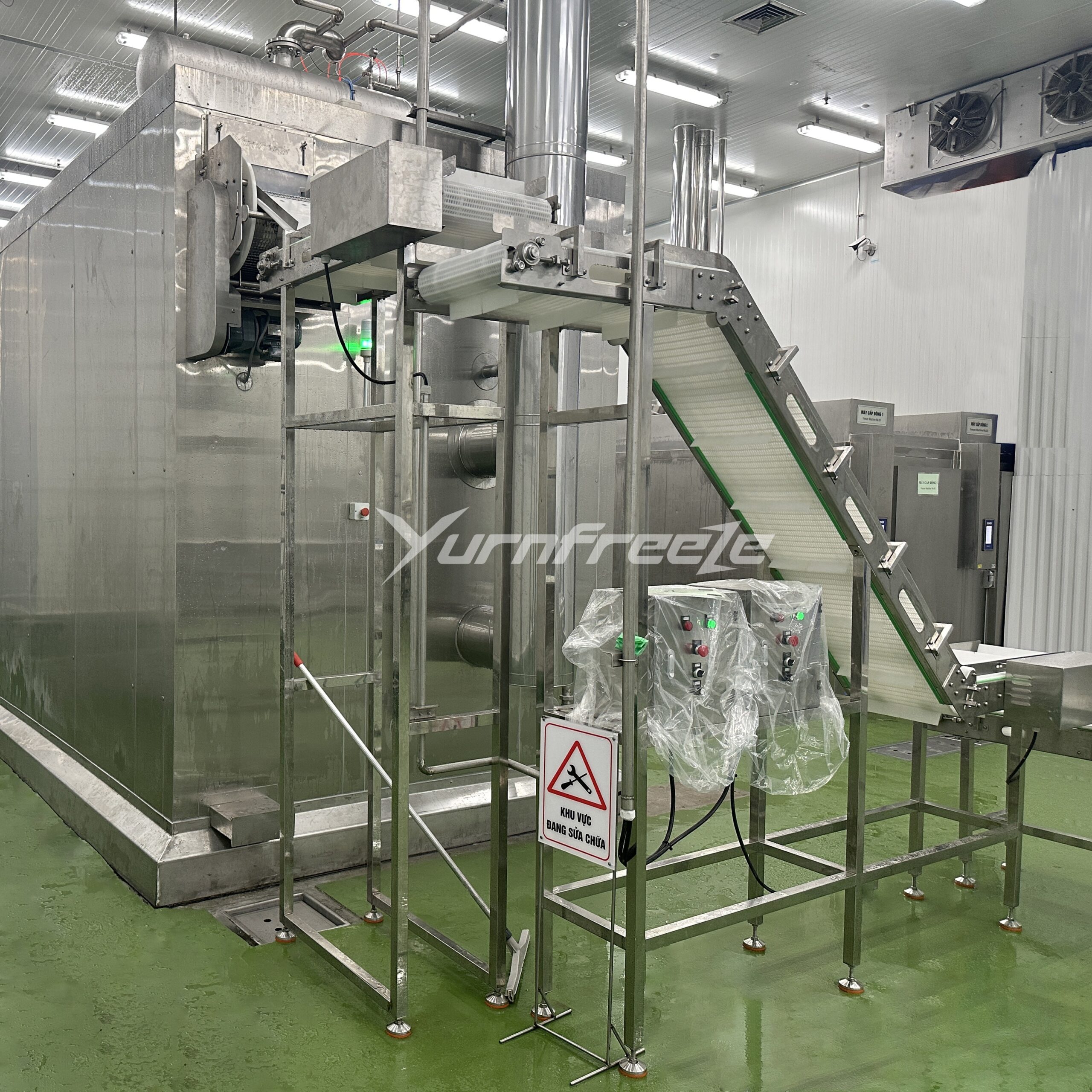

Self-stacking Spiral Freezer

Yurnfreeze Self-Stacking Spiral Freezer is an advanced continuous IQF freezing system designed for high efficiency, long running hours, and reduced operating costs.
Its unique self-stacking belt structure eliminates the traditional spiral drum, enabling smoother belt motion, lower mechanical wear, and improved hygiene performance.

This design is widely recognized in modern food processing plants for its compact footprint, energy efficiency, and ease of maintenance.

Technical Highlights:
  • Short freezing time, high throughput
  • Compact footprint
  • Lower energy consumption
  • Minimal product dehydration
  • Long continuous running hours

Core Technology & Design Features

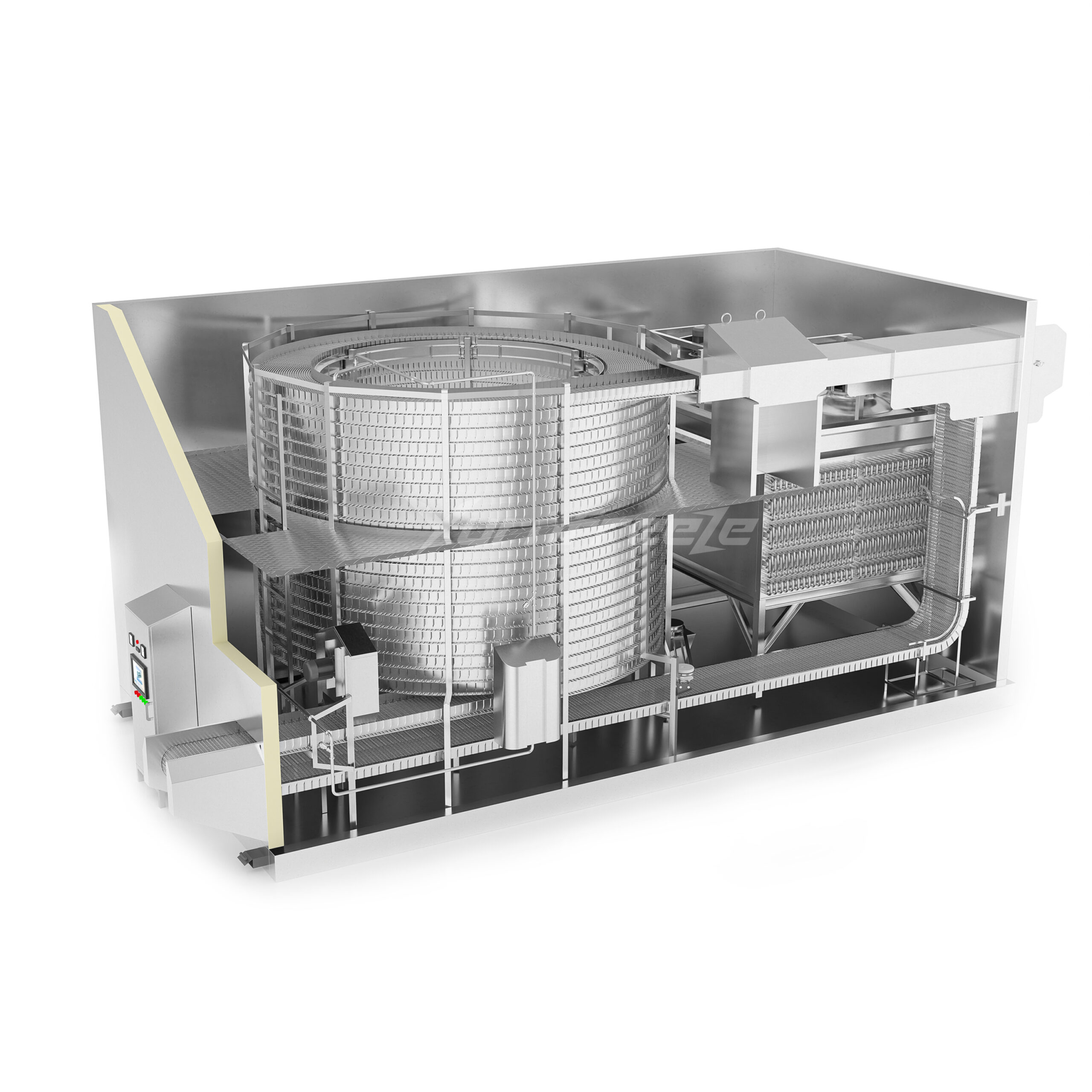

         Self-Stacking Belt:

  • Food-grade SUS304 stainless steel construction
  • Fewer support points for easier cleaning and maintenance
  • High strength, long service life, reduced maintenance cost



        Chain-Ball Drive System:

  • Polymer balls combined with heavy-duty stainless steel chains
  • Precision rail system with ±1 mm accuracy
  • Up to 50% lower driving power compared to traditional drum spiral freezers



        CIP Cleaning System:

  • Complete cleaning cycle: defrosting, washing, disinfection, and drying
  • Combination of automatic and manual cleaning modes
  • Low-pressure foam cleaning reduces water and chemical consumption

        ADF Compressed Air Defrosting:

  • Improves heat exchange efficiency
  • Minimizes frost buildup on evaporators
  • Supports longer continuous operation



        Centrifugal Fans:

  • Double-welded impellers for durability
  • VFD-controlled airflow for precise freezing control
  • Stable air circulation with minimal pressure fluctuation


         Evaporator:

  • Aluminum or aluminum-magnesium fins
  • Optimized design based on refrigerant type
  • High heat exchange efficiency

Typical Applications

  • Meat Products: ham, sausages, drumsticks, nuggets, meatballs
  • Seafood: shrimp, fish fillets, shellfish, fish balls
  • Dough & Pastry: dumplings, buns, spring rolls, tangyuan
  • Prepared Foods: meal kits, fried foods, ready-to-eat products
